Technical Specifications
Diesel Generator Set
- Make and Model: TL Power TM33-S
- Standby Rating Output (50Hz): 33
- Prime Rating Output (50Hz): 30

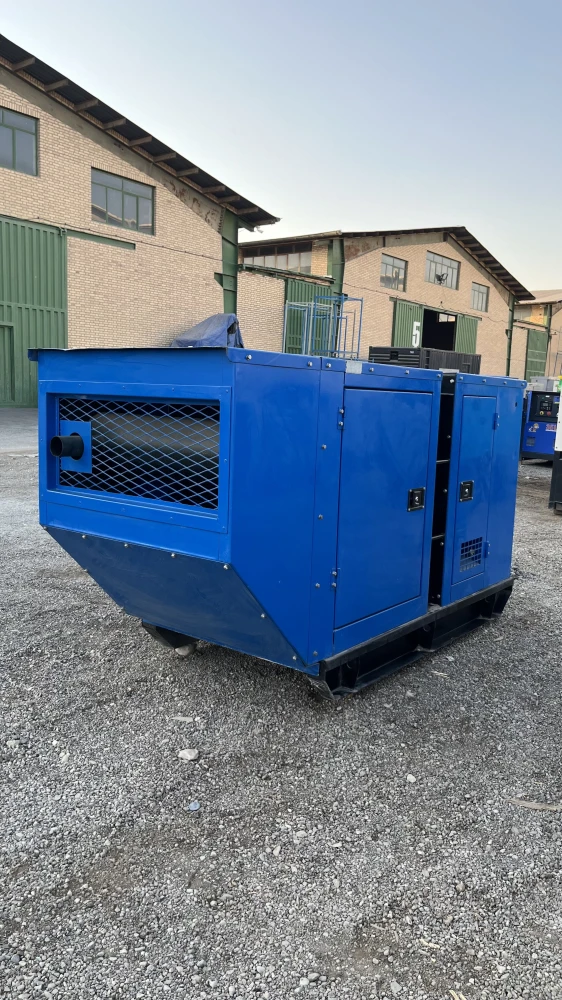

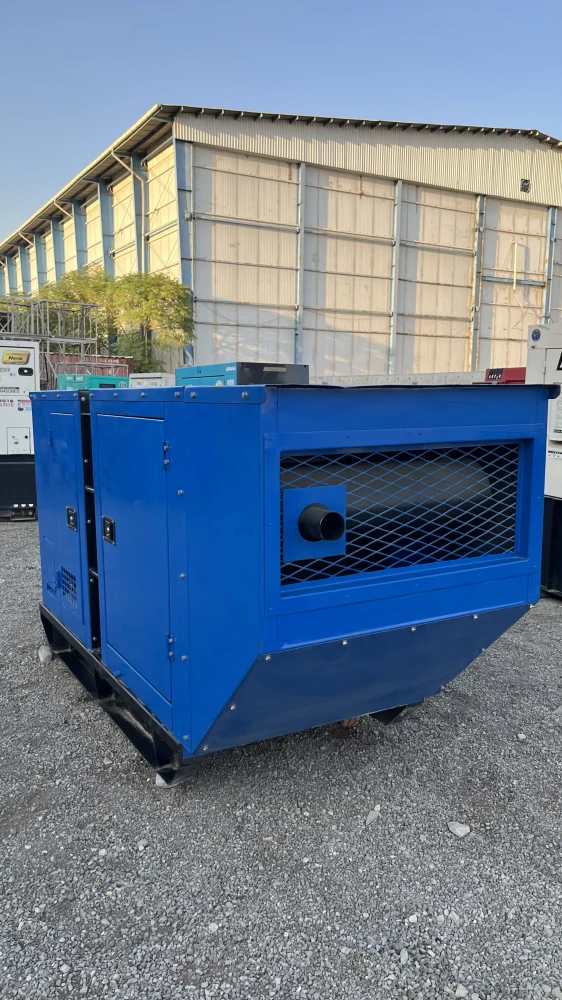

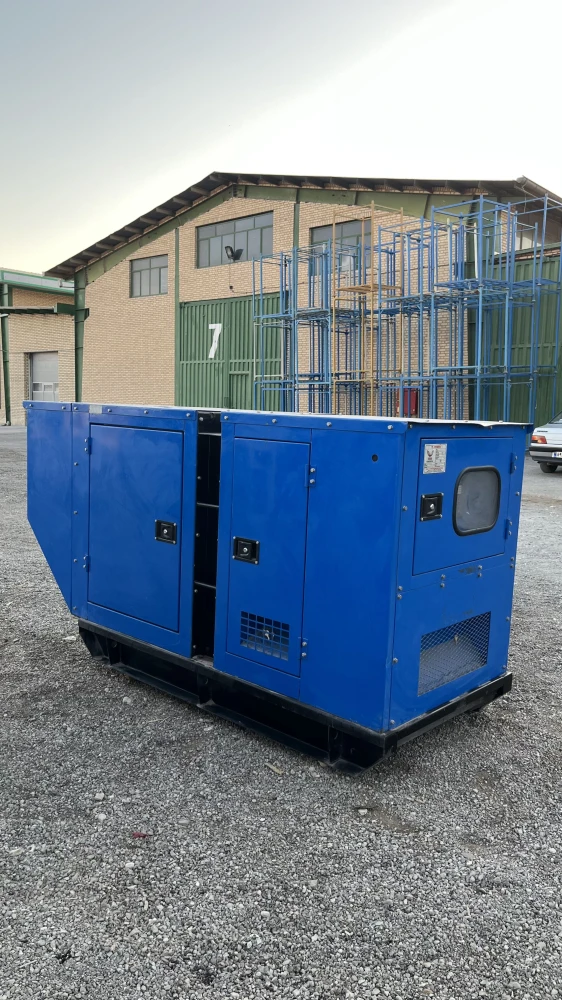

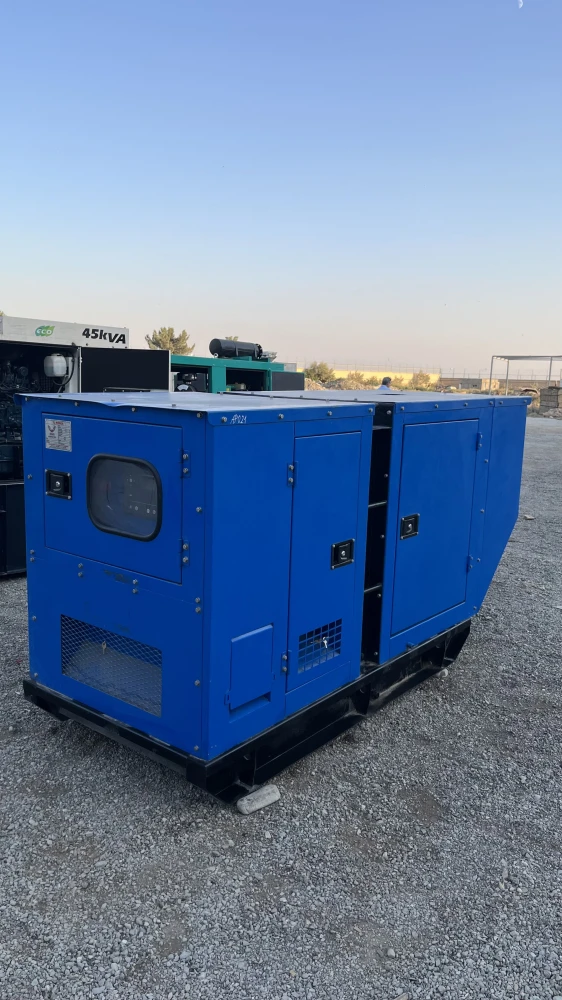

- Configuration (Open-set/Canopy): Silent Canopy Made by TL Power
- Year of Manufacture: 2016
- Condition: Used

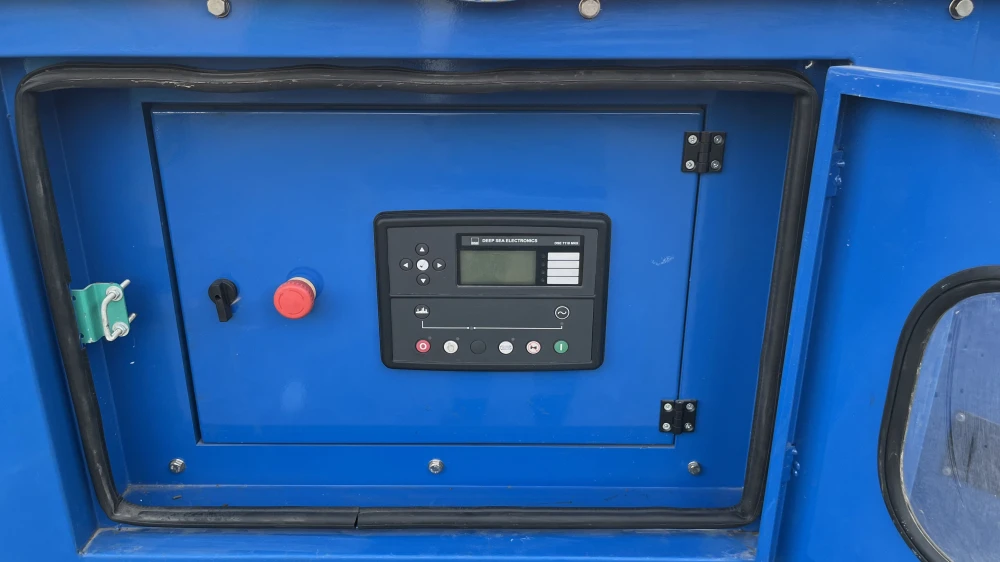

- Controller: DSE 7110 MKII
- Availability: In Stock – Warehouse 2

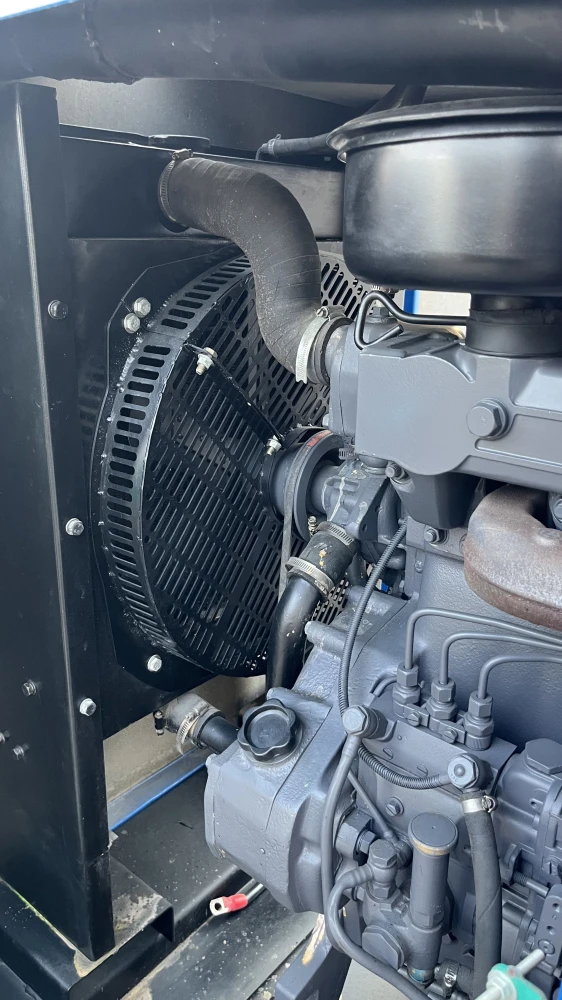

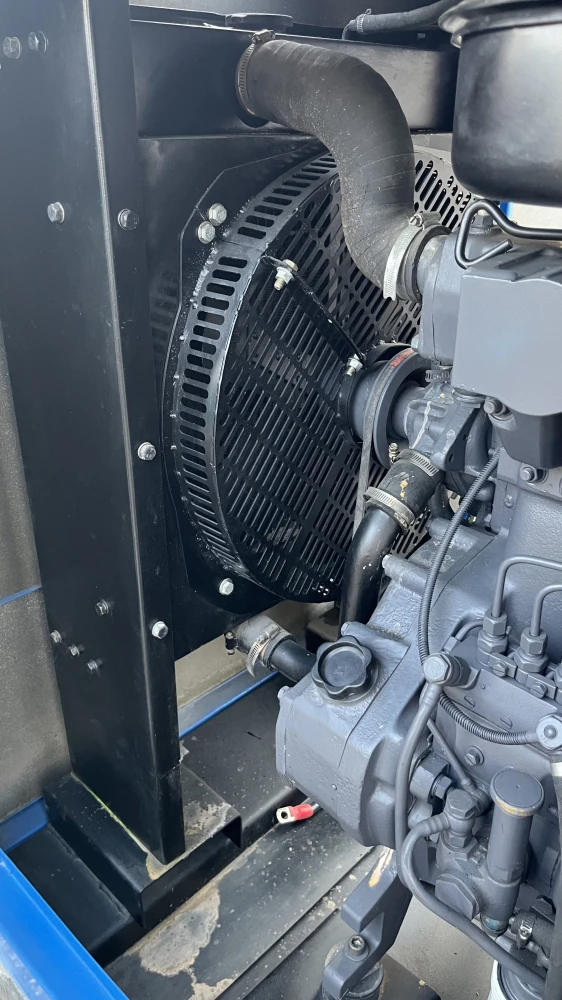

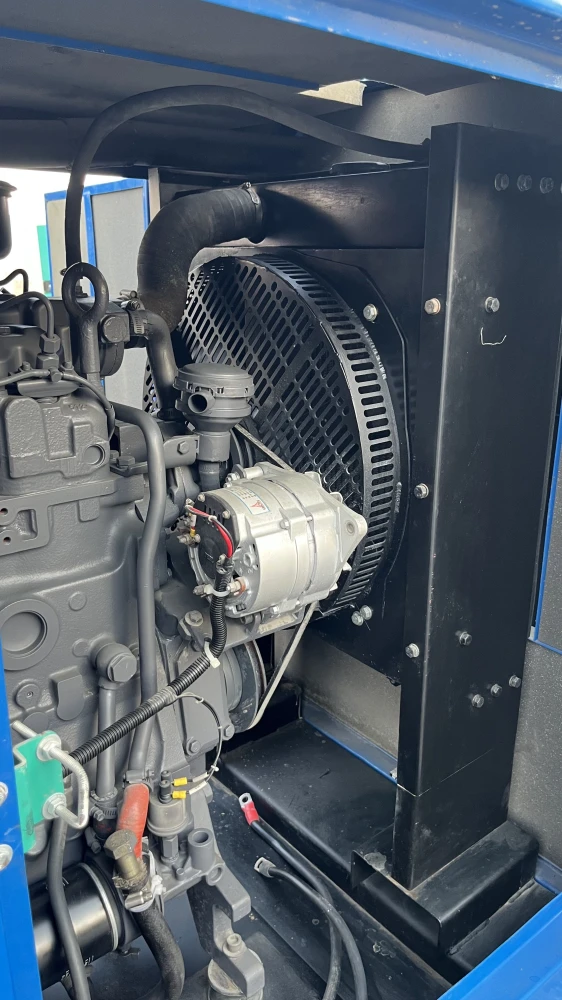

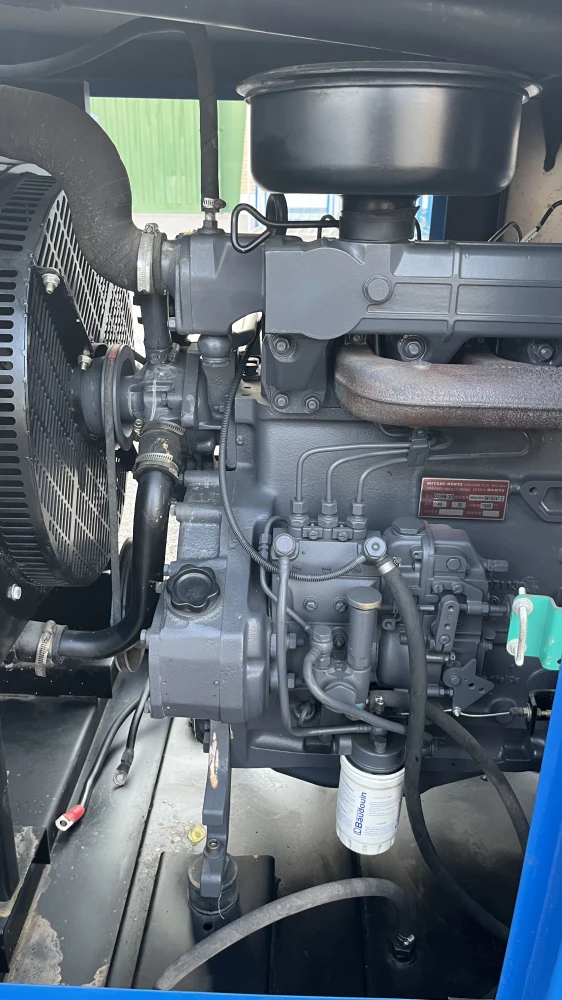

Engine

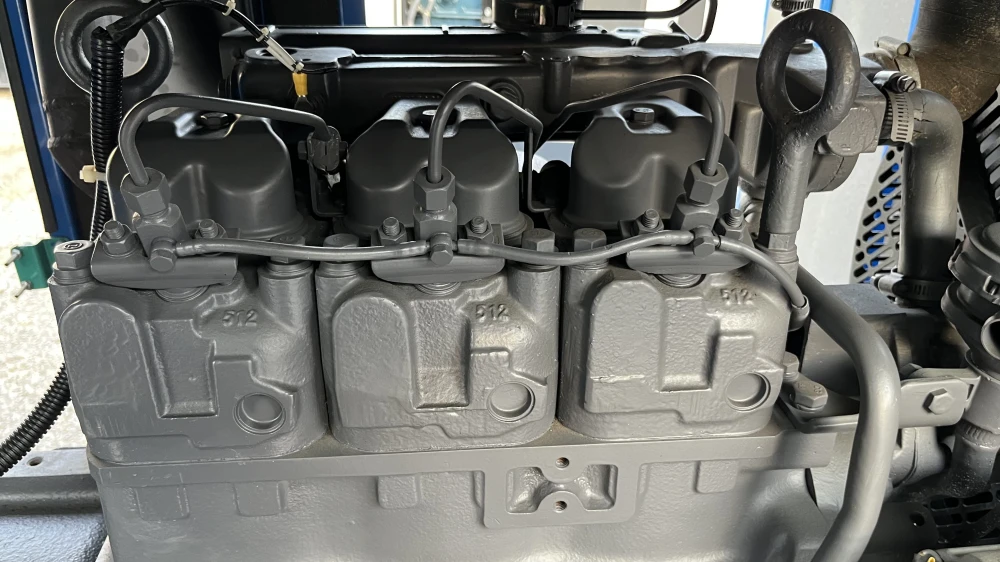

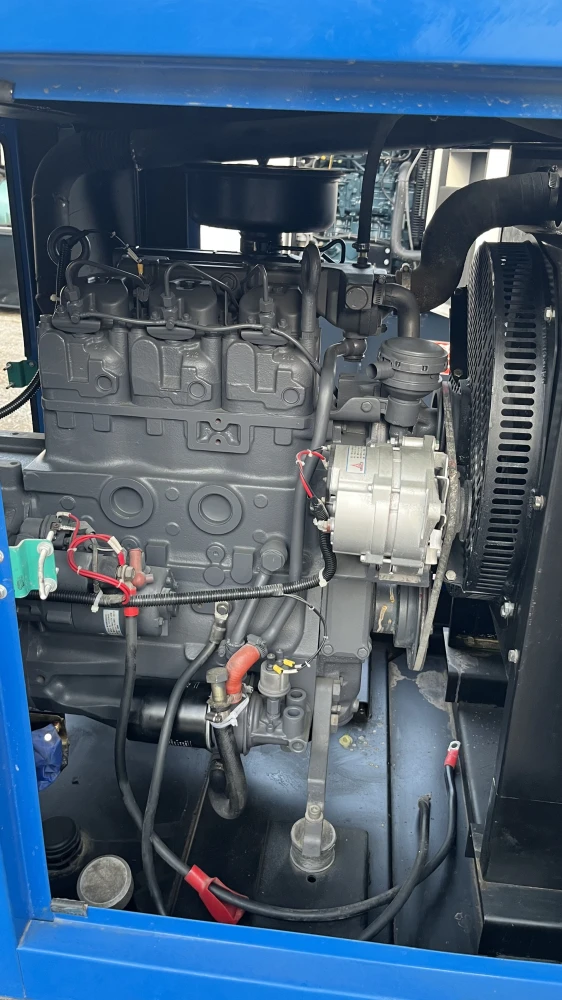

- Make and Model: Deutz D226B-3D
- Cylinders: Inline-3
- Aspiration: Naturally Aspirated
- Bore x Stroke (mm): 105 x 120
- Total Displacement (Litre): 3.11
- Fuel: Diesel

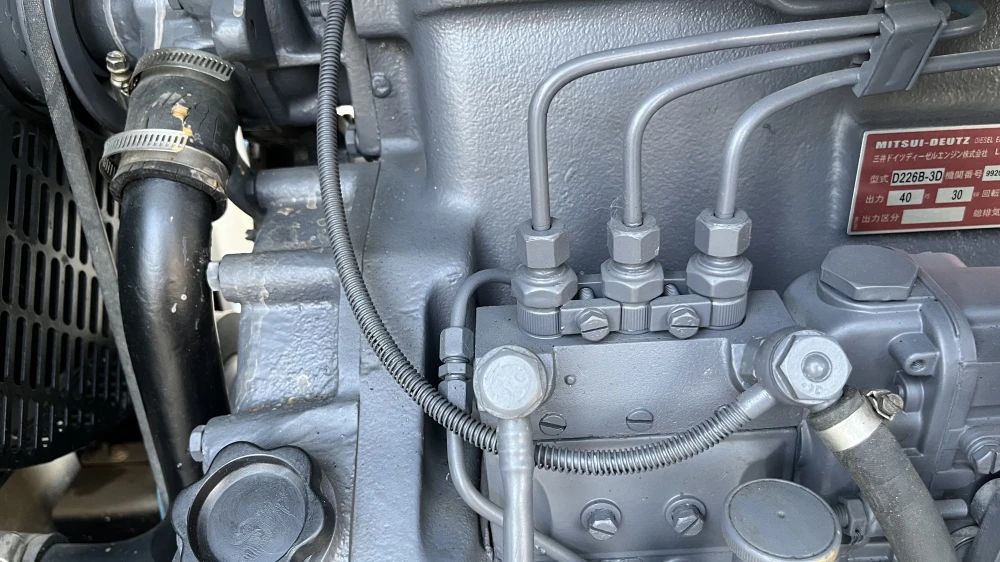

- Fuel System Type: Pump-Line-Nozzle (PLN) with Mechanical In-Line Injection
- Lube Oil Capacity (Litre): 7.2
- Coolant Capacity (Litre): 10
- Mounted Fuel Tank Capacity (Litre): 60
- Governor and Actuator Type: Mechanical Governor, Mechanical Linkage Actuator
- Exhaust Silencer: Included
Generator Set Dimensions and Weight
- Length (mm): 2,600
- Width (mm): 900
- Height (mm): 1,300
- Weight (kg): 600

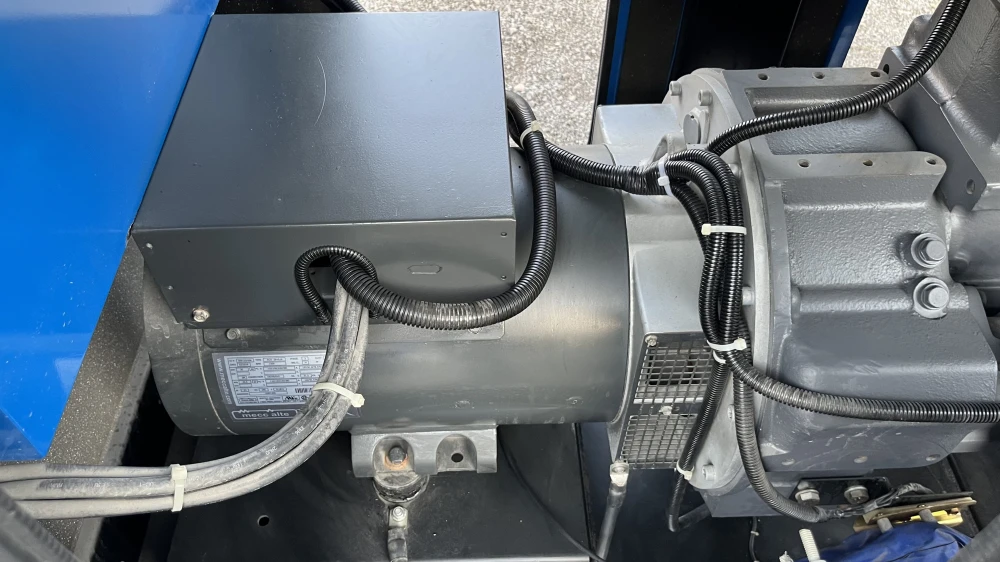

Alternator
- Make and Model: Mecc Alte ECO 28-VL/4
- Voltage (V): 220/380
- Frequency (Hz): 50
- No. of Phases: Three
- Power Factor: 0.8
- Insulation: Class H
