Airman SDG45AS | 45 kVA Super Silent Diesel Generator Powered by Nissan Diesel
Engine
Alternator
Genset
Technical Specifications
Diesel Generator Set
- Make and Model: Airman SDG45AS
- Standby Rating Output (60Hz): 50
- Prime Rating Output (60Hz): 45
- Standby Rating Output (50Hz): 41
- Prime Rating Output (50Hz): 37

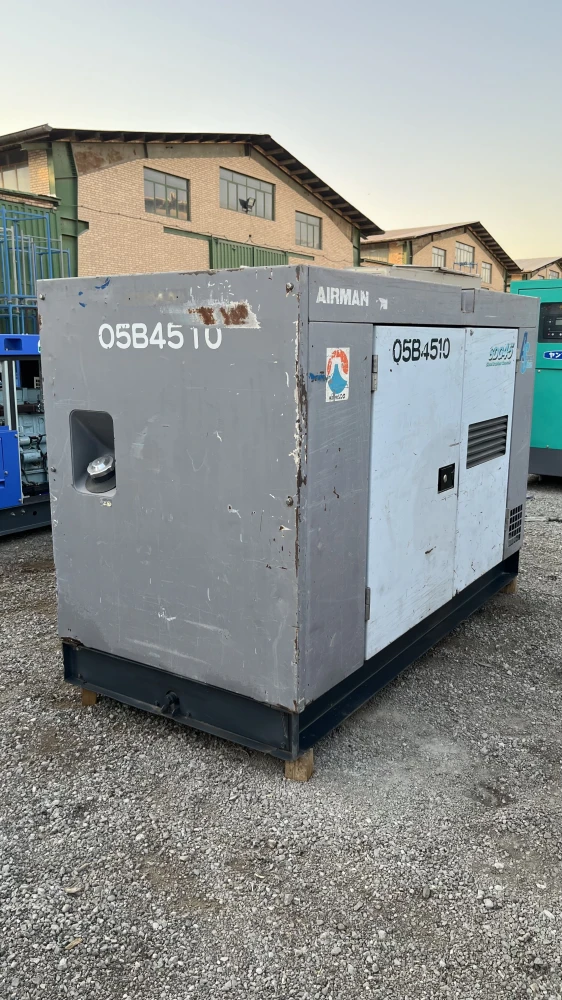

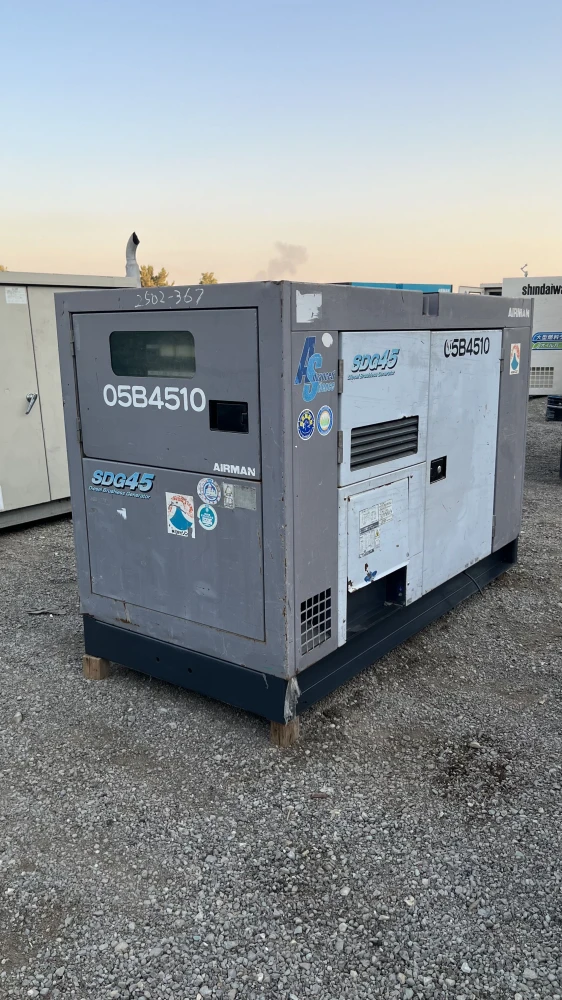

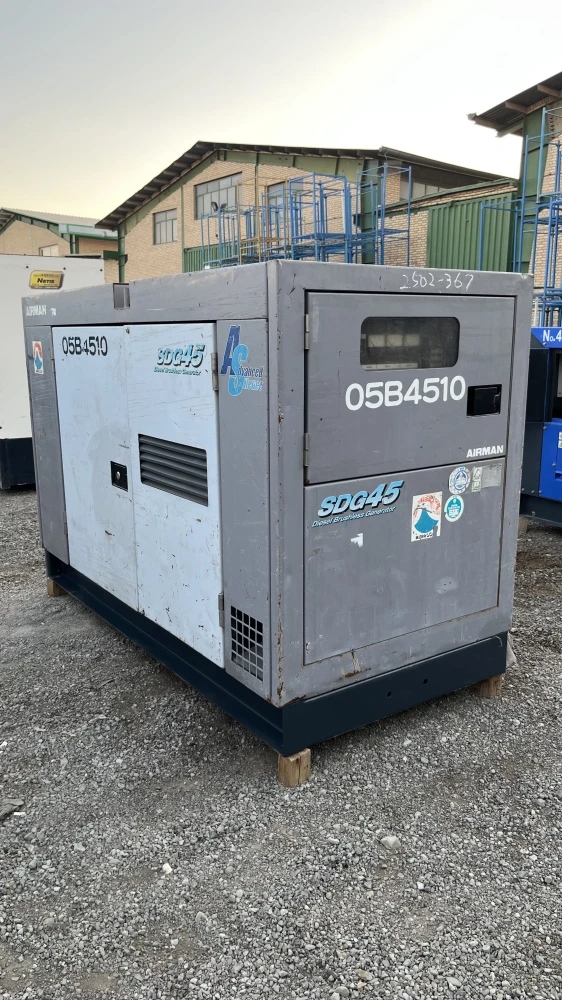

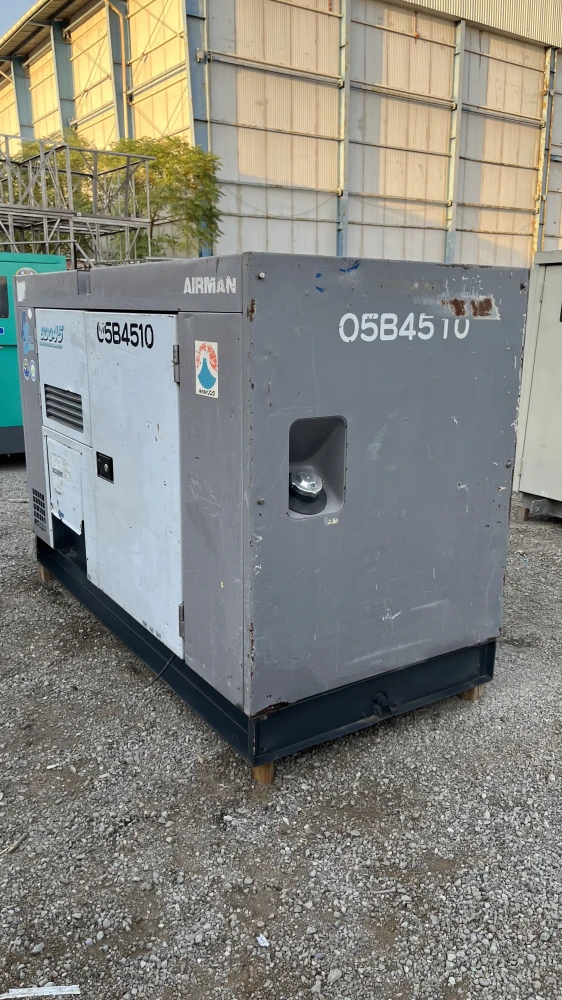

- Configuration (Open-set/Canopy): Super Silent Canopy Made by Airman
- Year of Manufacture: 2005
- Condition: Used
- Runtime (hours): 16,750

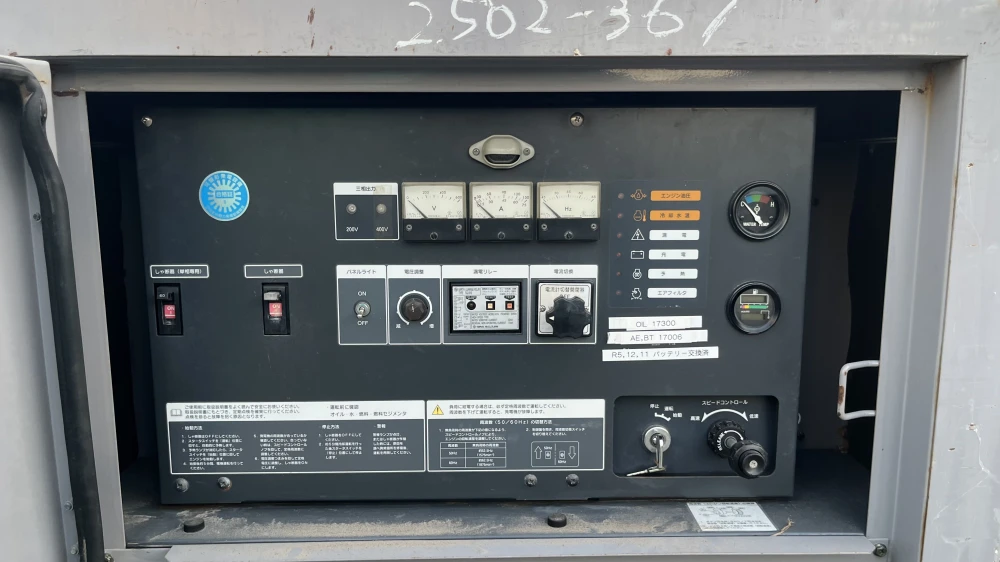

- Controller: Airman Exclusive Control Panel
- Availability: In Stock – Warehouse 2

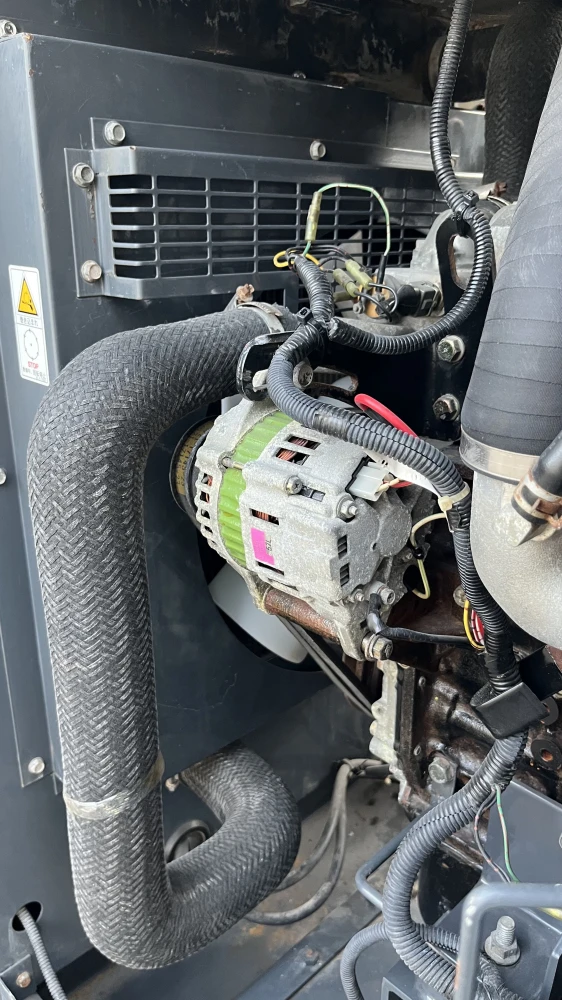

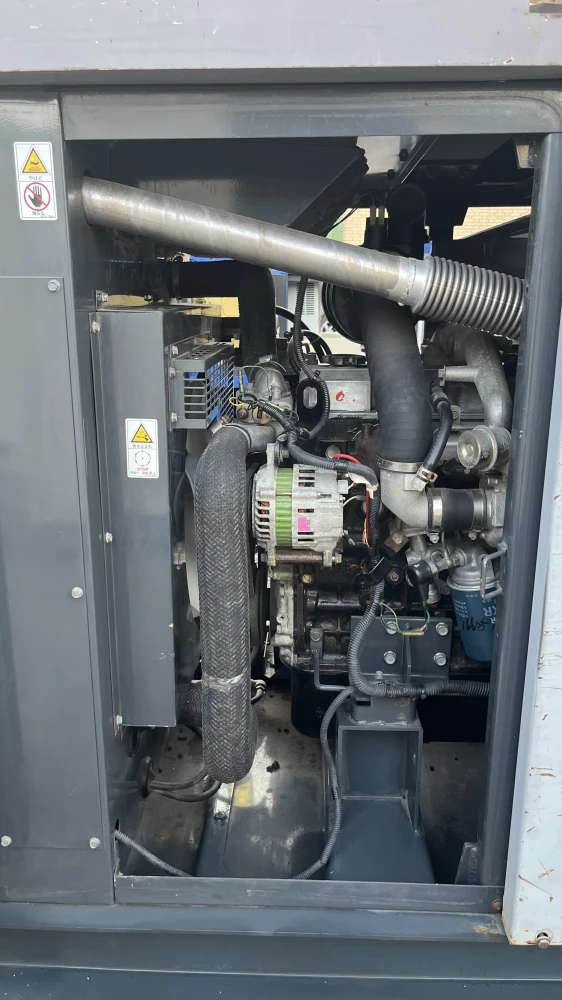

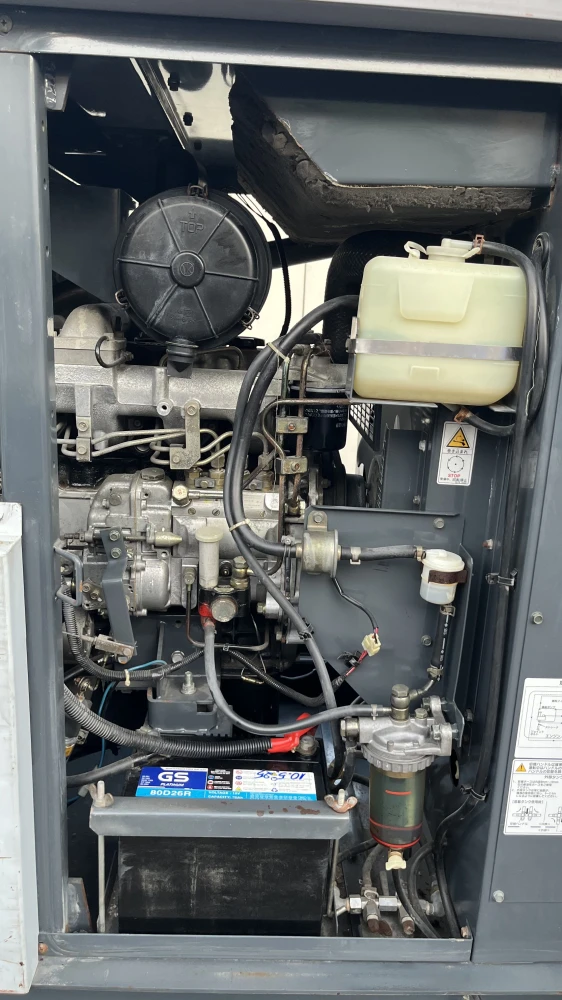

Engine
- Make and Model: Nissan Diesel 2A-BD30T
- Cylinders: Inline-4
- Aspiration: Turbocharged, Aftercooled
- Bore x Stroke (mm): 96 x 103
- Total Displacement (Litre): 2.98
- Fuel: Diesel

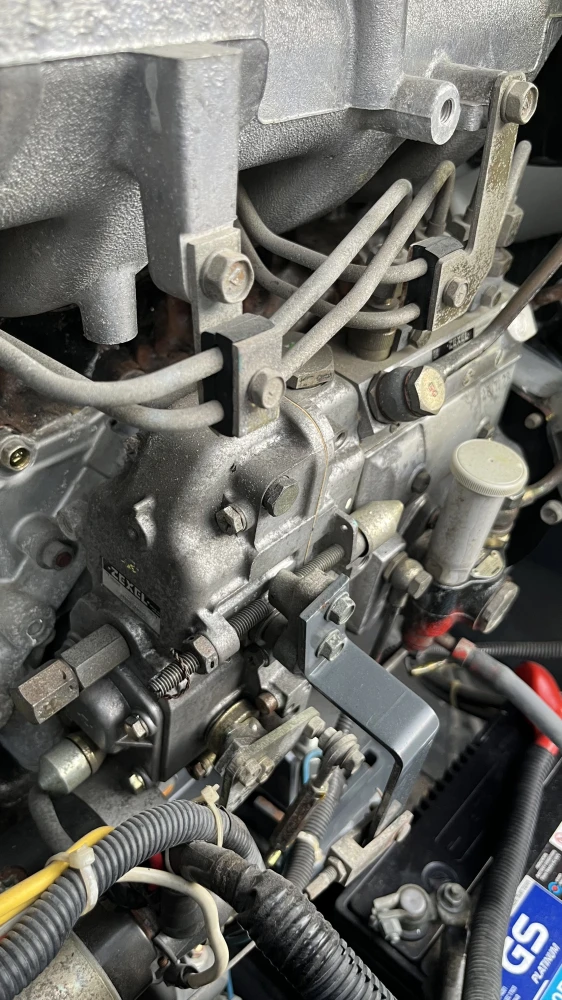

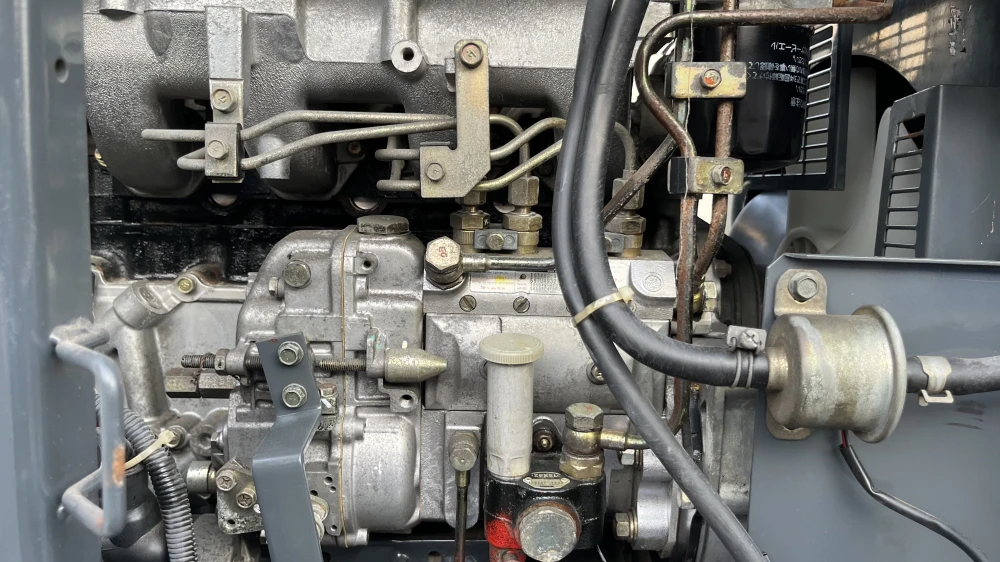

- Fuel System Type: Pump-Line-Nozzle (PLN) with Mechanical In-Line Injection
- Lube Oil Capacity (Litre): 11
- Coolant Capacity (Litre): 11
- Mounted Fuel Tank Capacity (Litre): 100
- Governor and Actuator Type: Mechanical Governor, Mechanical Linkage Actuator
- Exhaust Silencer: Included
Generator Set Dimensions and Weight
- Weight (kg): 1,340
Alternator
- Make and Model: Taiyo Electric Co. TWH 20DL
- Voltage (V): 220/380
- Frequency (Hz): 50
- No. of Phases: Three
- Power Factor: 0.8
- Insulation: Class F
