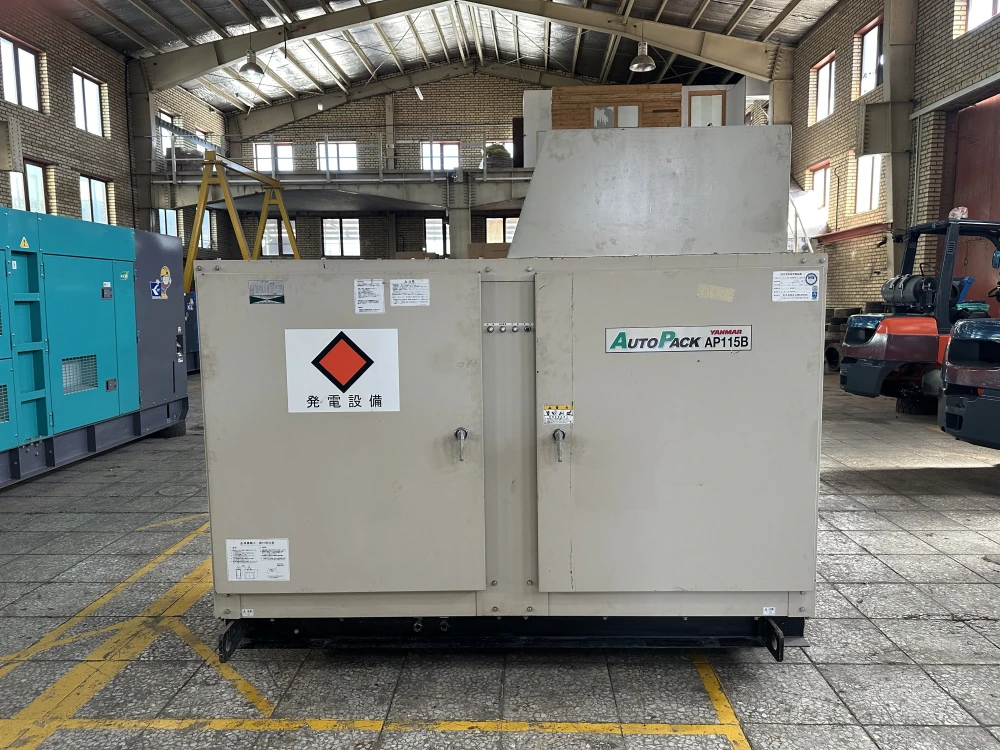

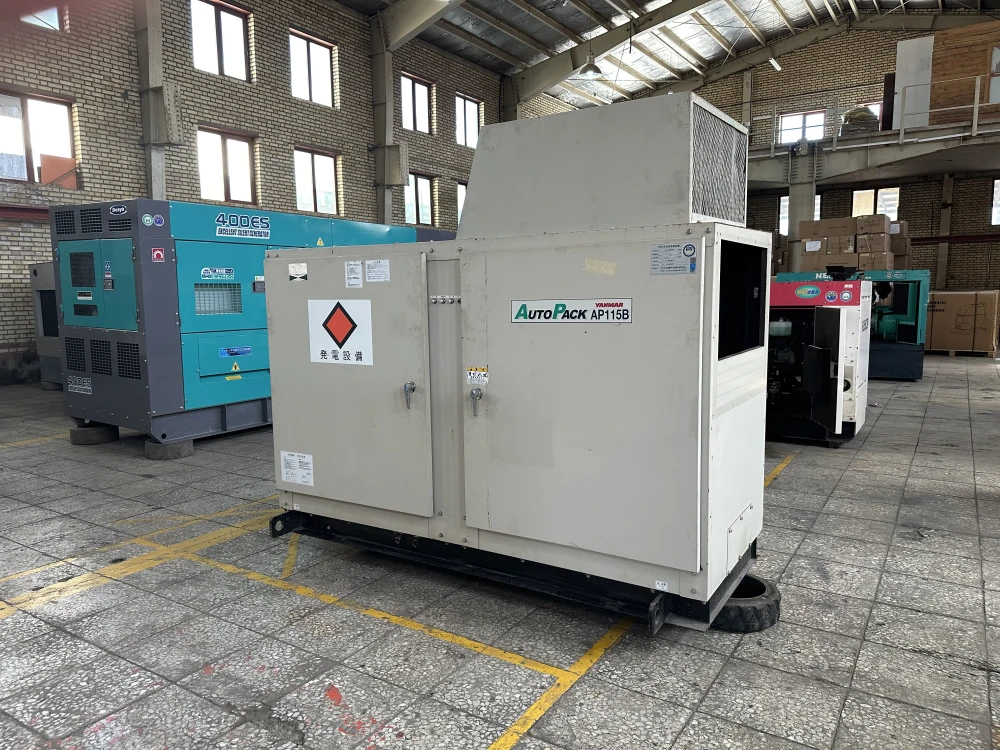

Yanmar AP115B-6 | 115 kVA Super Silent Diesel Generator
Engine
Alternator
Genset
Technical Specifications

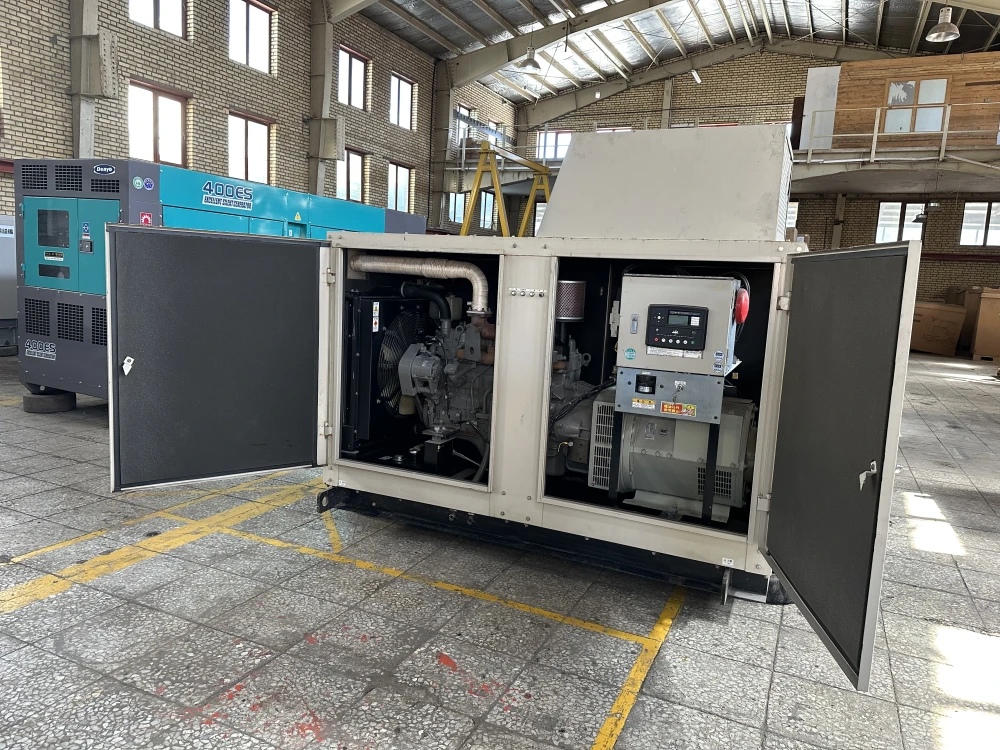

Diesel Generator Set
- Make and Model: Yanmar AP115B-6
- Standby Rating Output (60Hz): 125
- Prime Rating Output (60Hz): 115
- Standby Rating Output (50Hz): 105
- Prime Rating Output (50Hz): 95

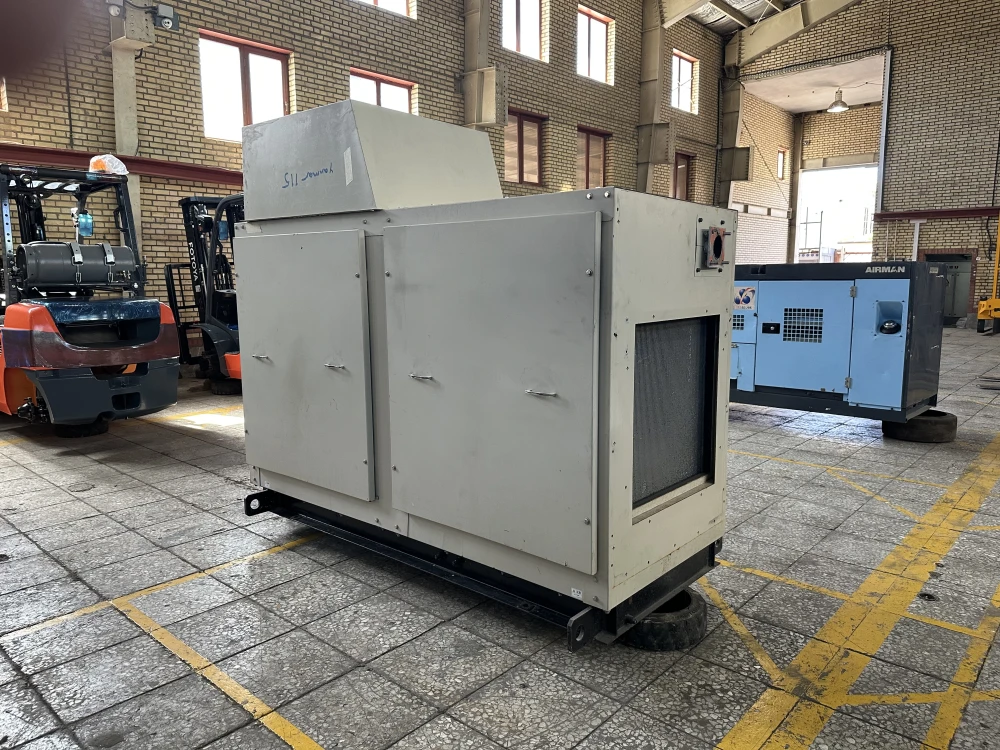

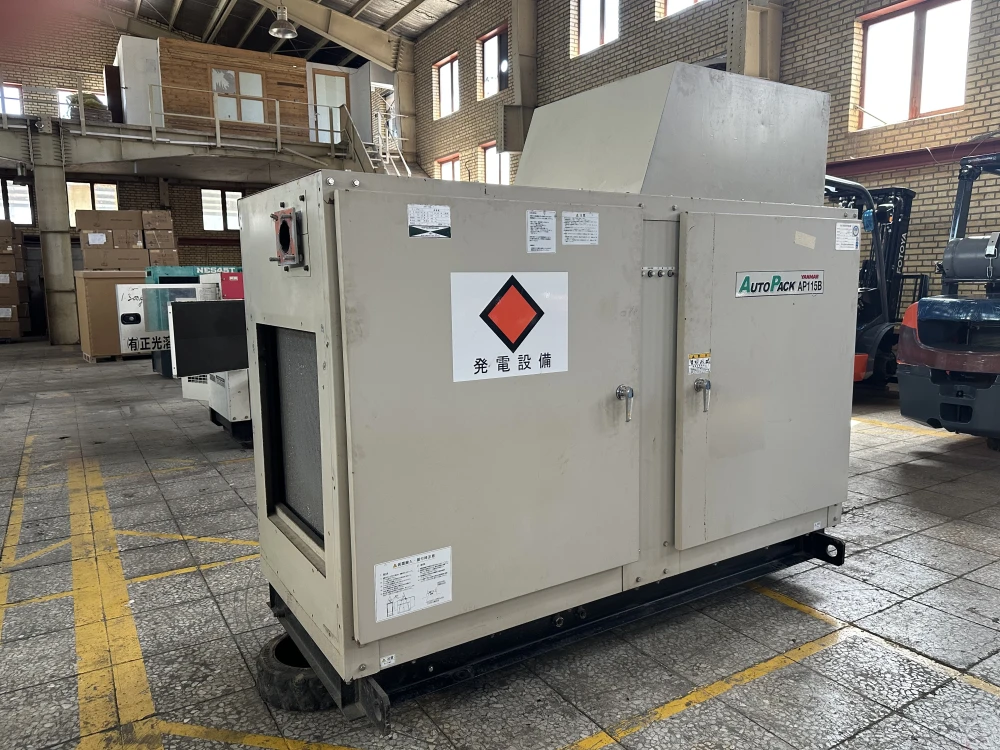

- Configuration (Open-set/Canopy): Super Silent Canopy Made by Yanmar
- Year of Manufacture: 2005
- Condition: Used

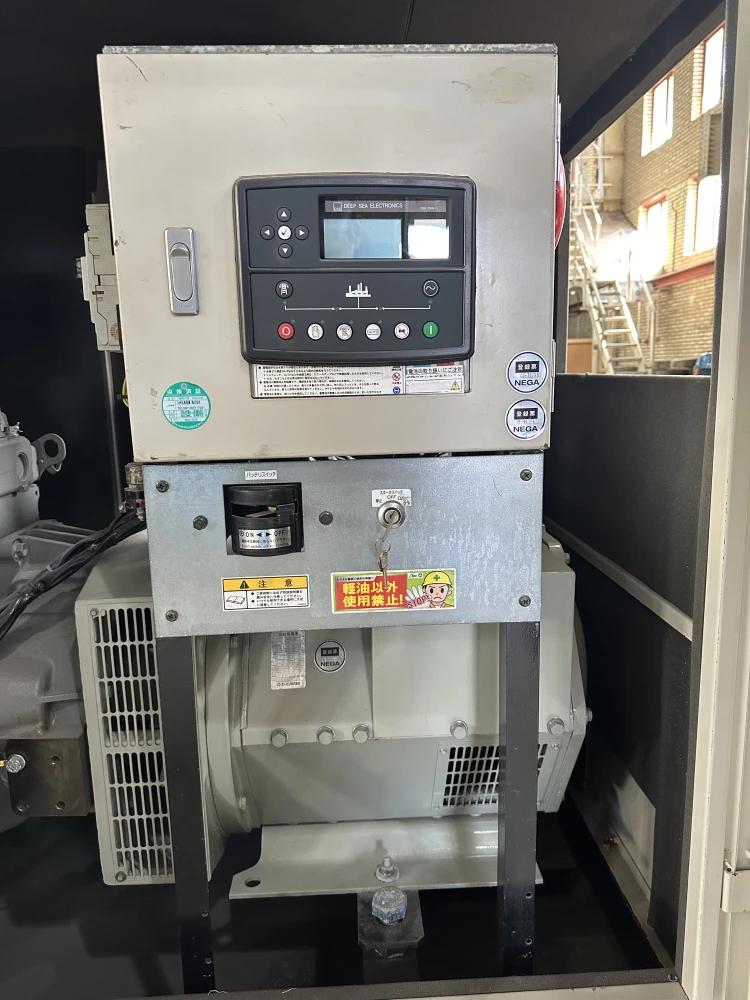

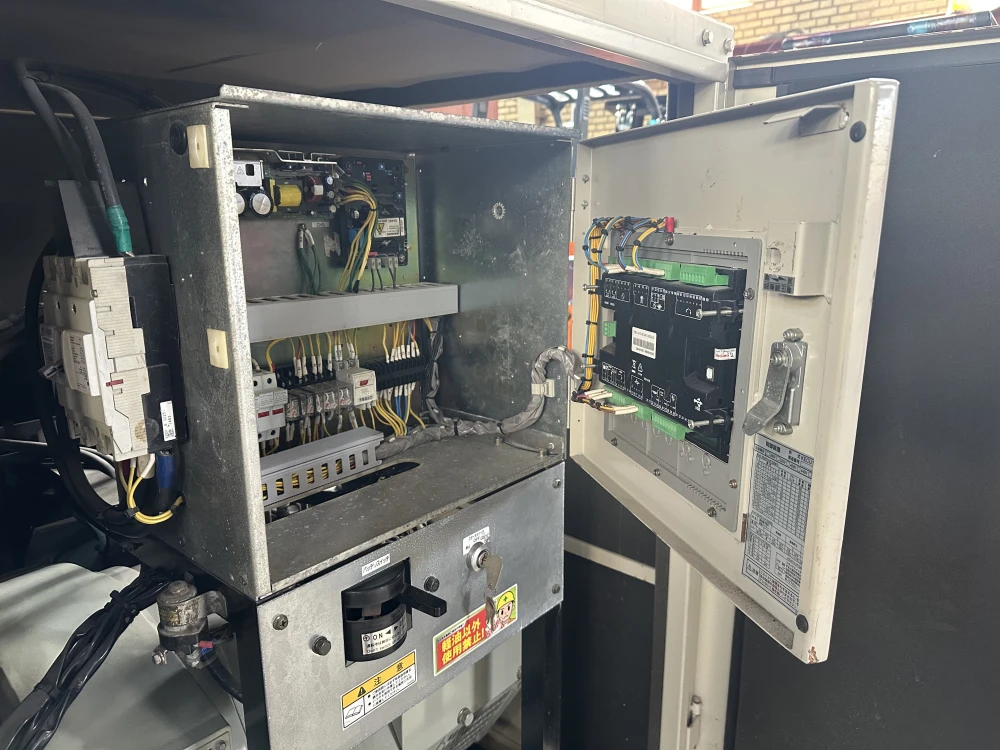

- Controller: DSE 7320
- Availability: In Stock – Warehouse 3 (K)

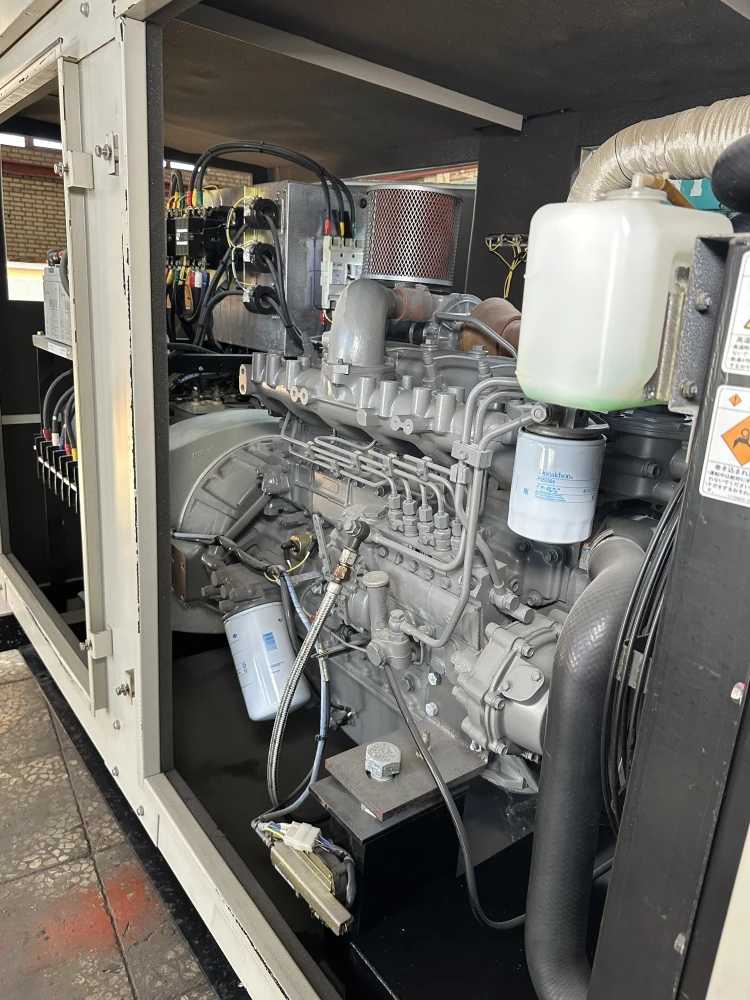

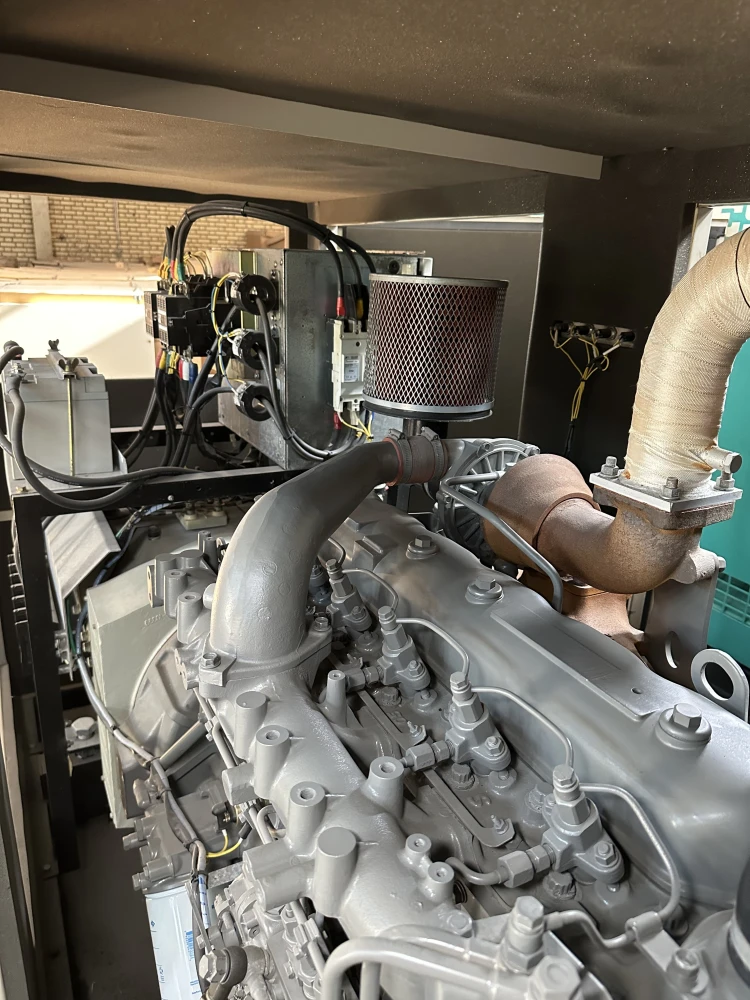

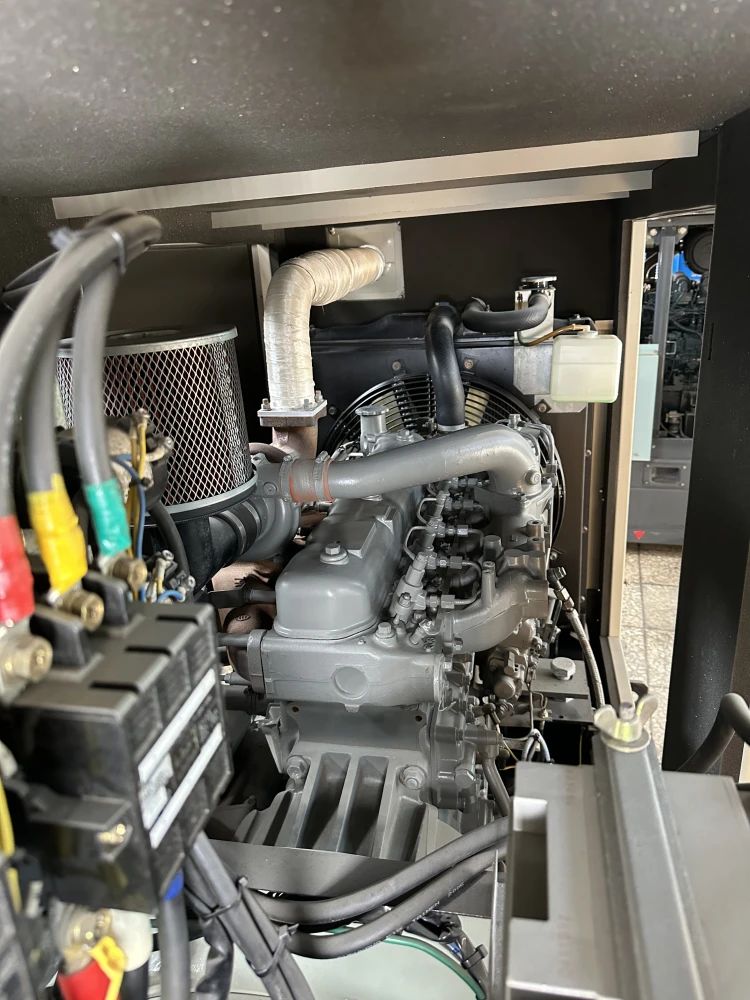

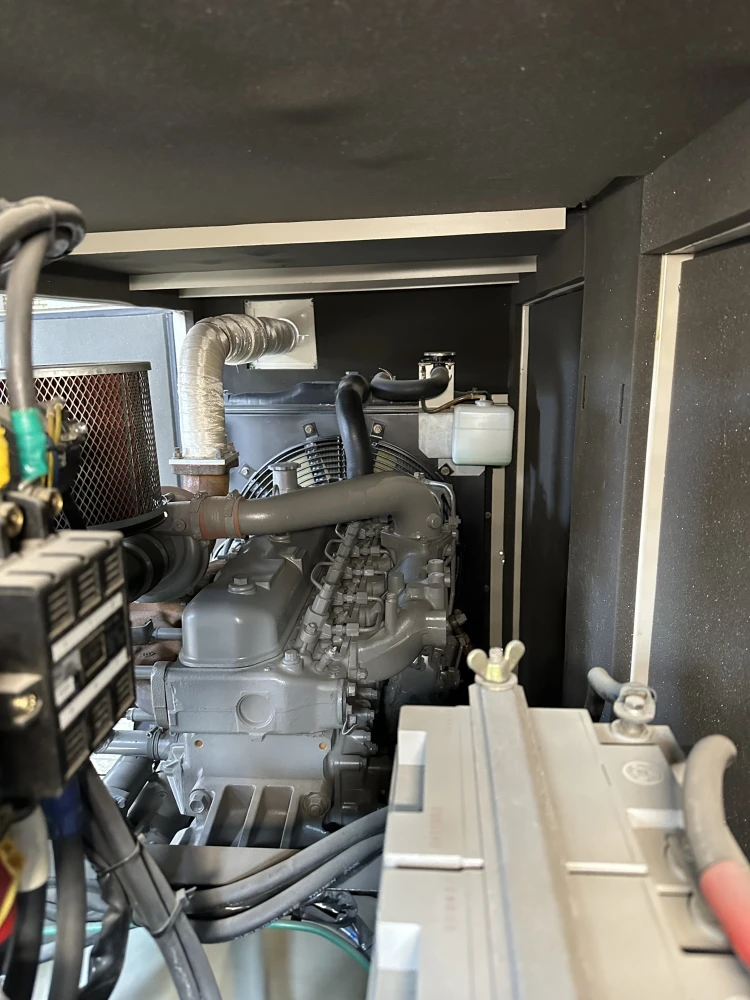

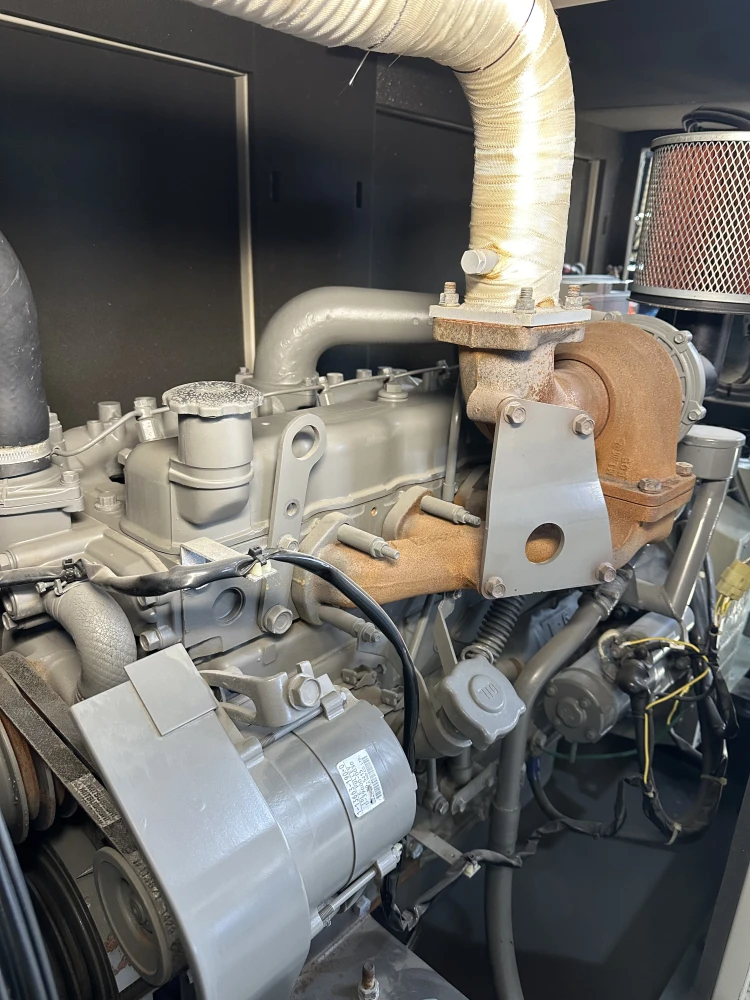

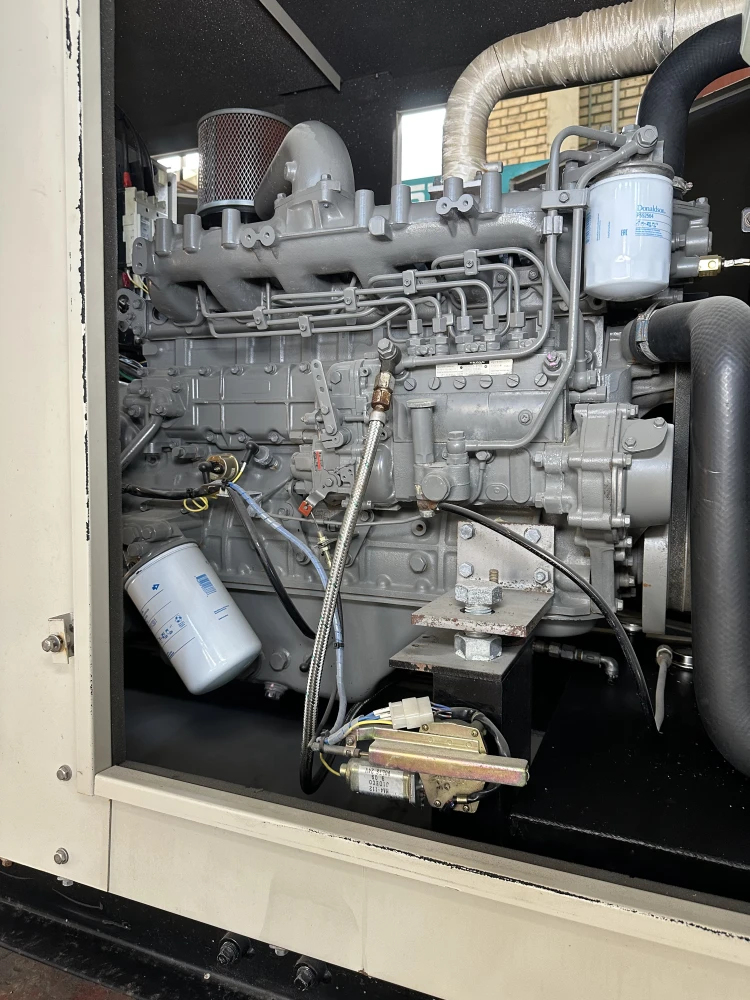

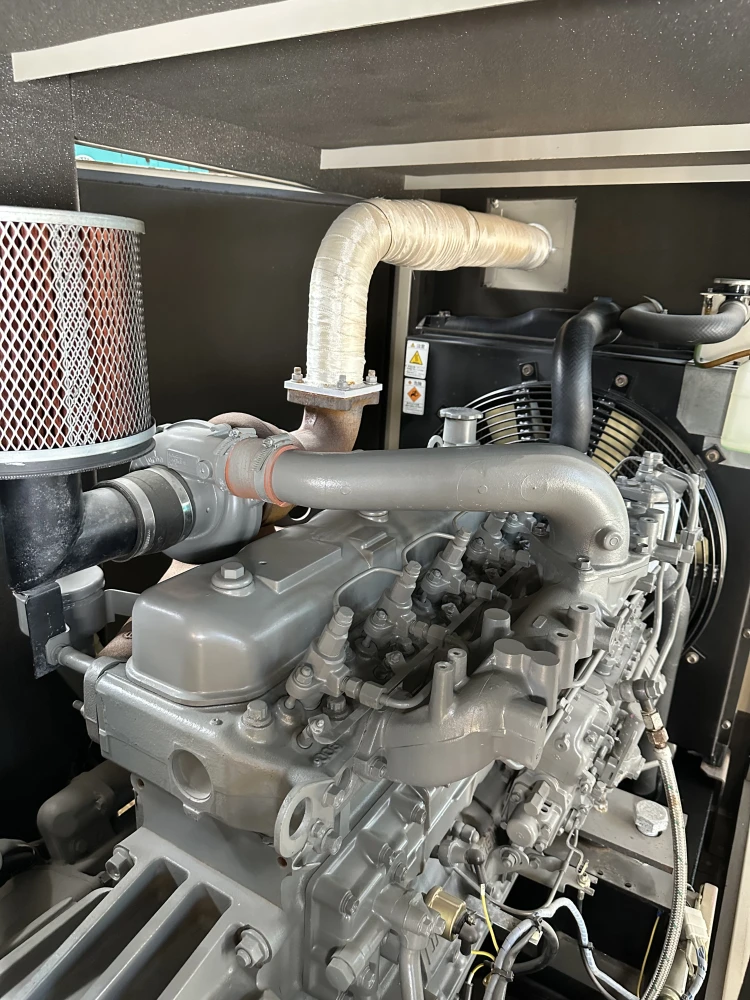

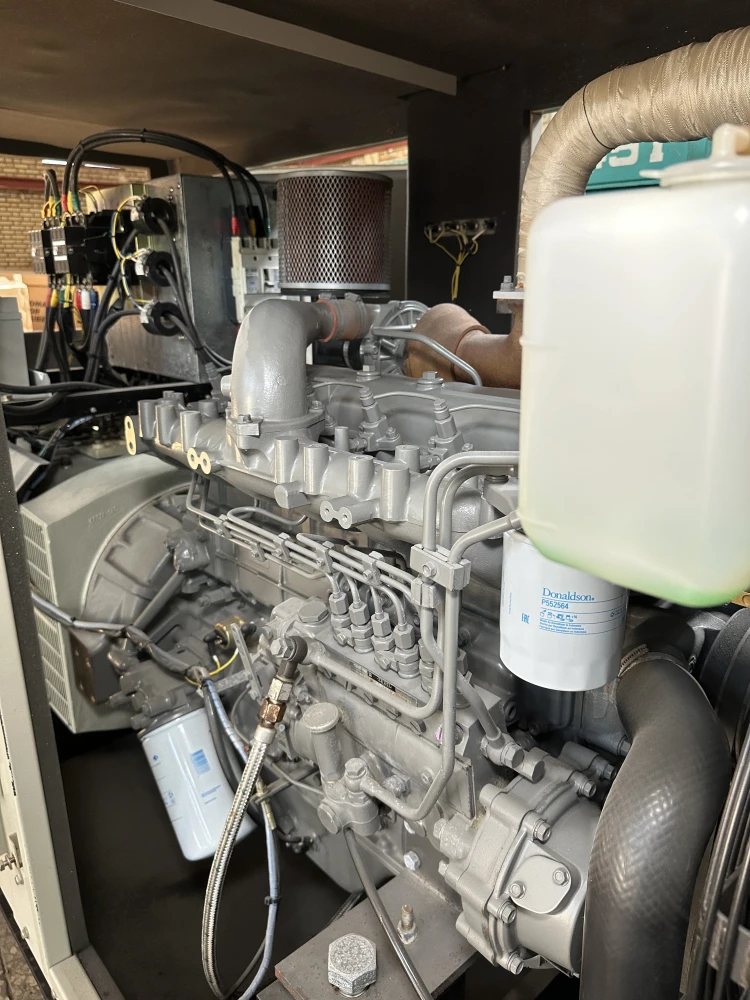

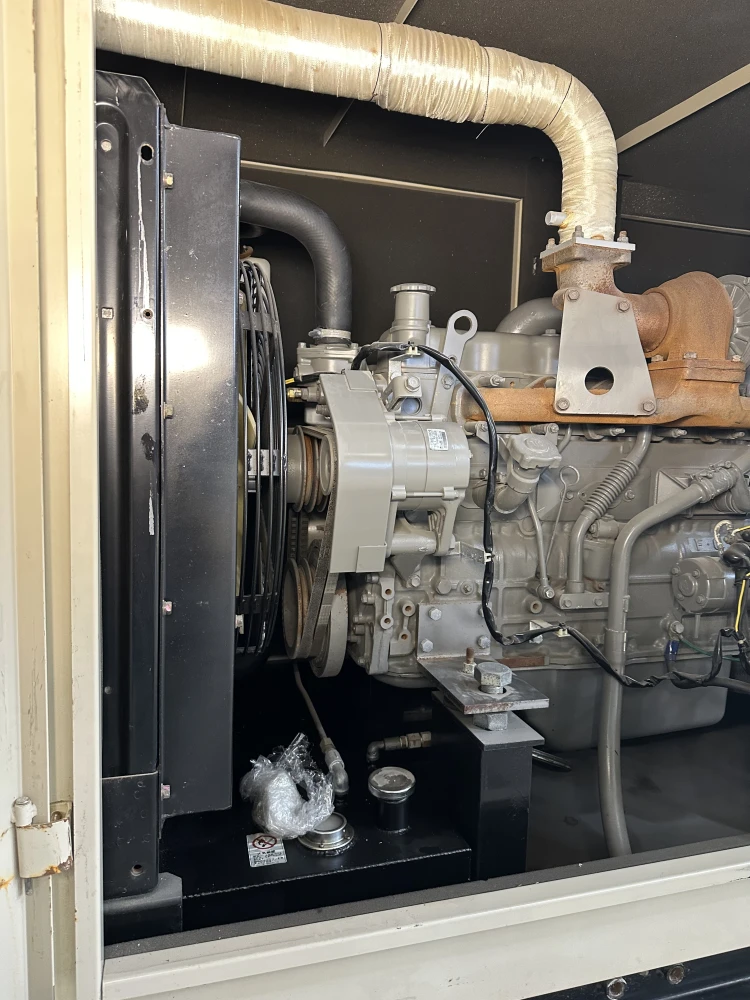

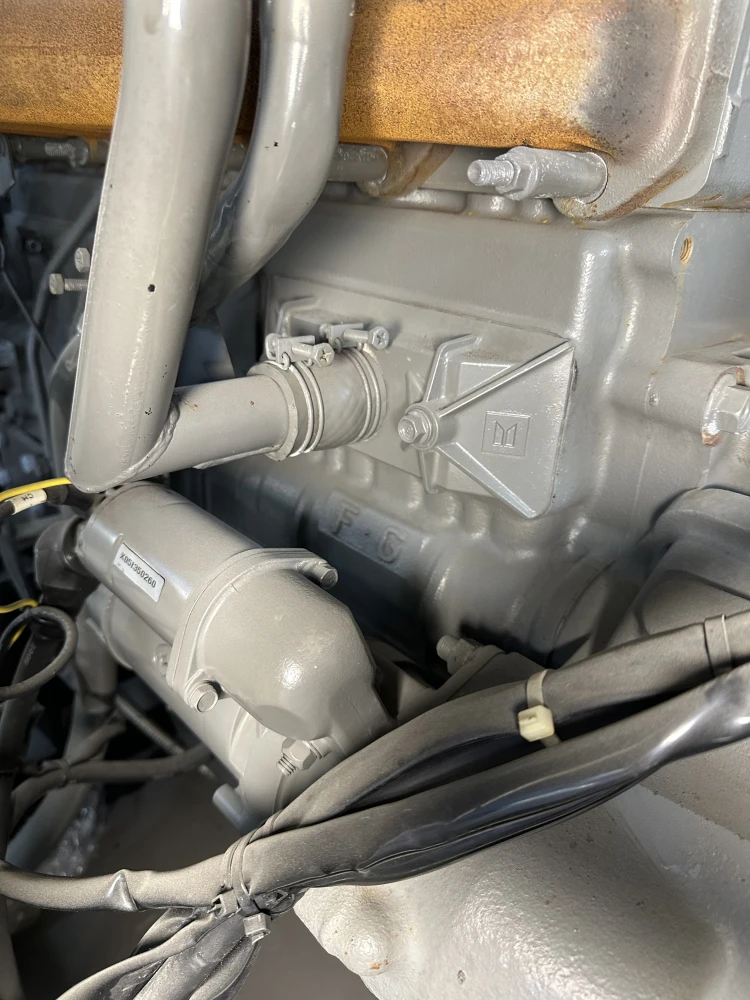

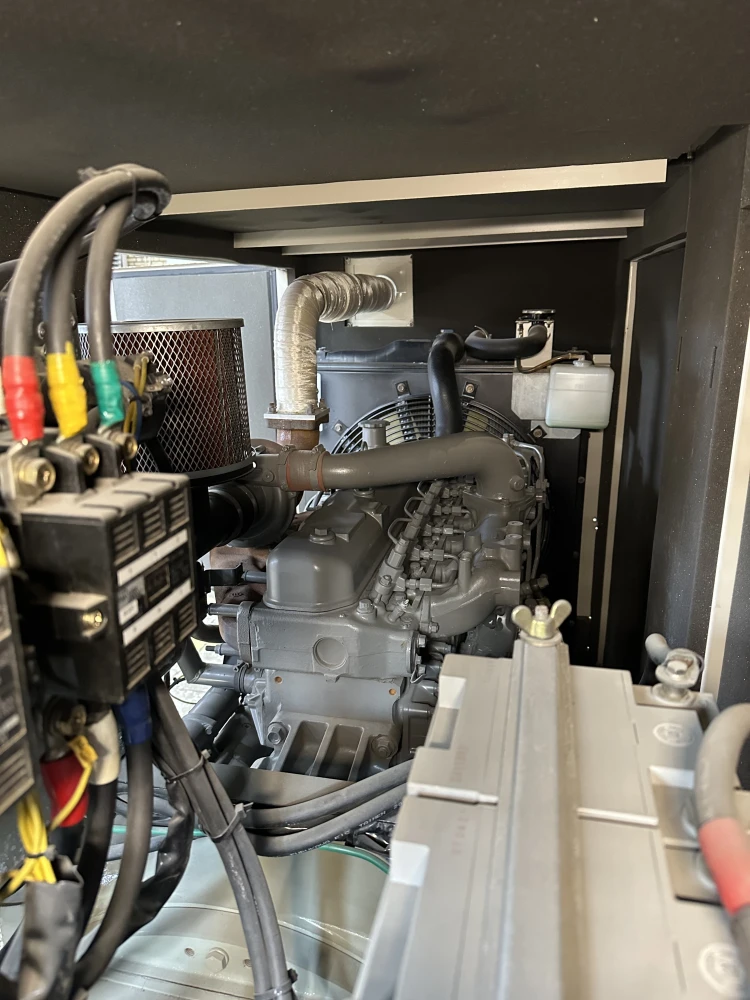

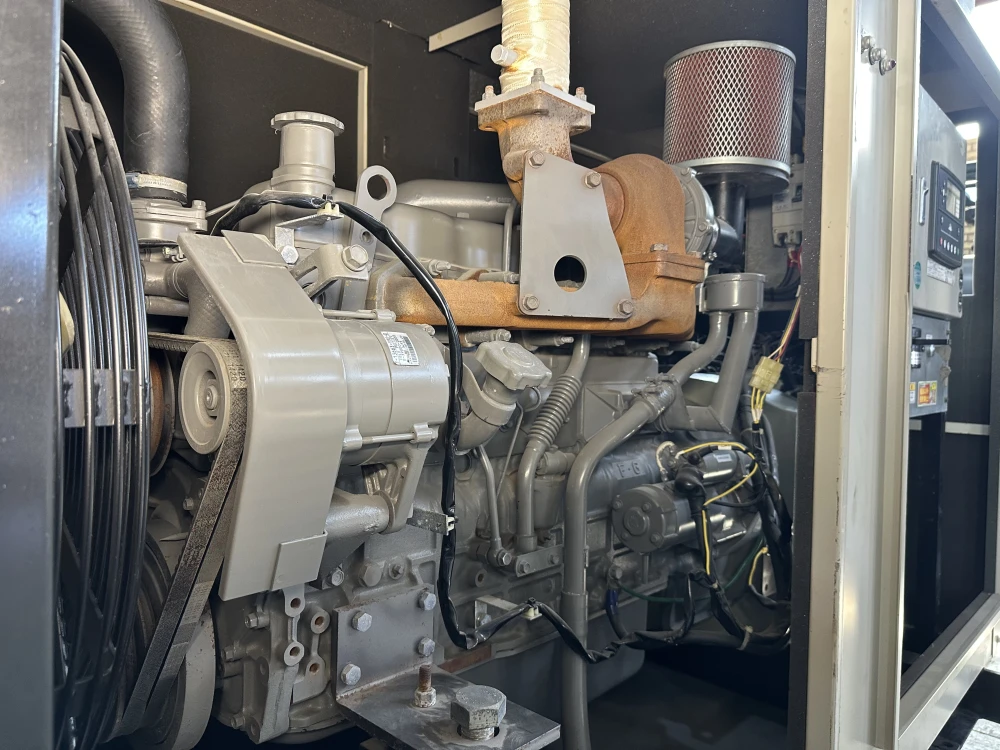

Engine
- Make and Model: Yanmar 6B105T-GL
- Cylinders: Inline-6
- Aspiration: Turbocharged, Aftercooled
- Bore x Stroke (mm): 105 x 125
- Total Displacement (Litre): 6.49
- Fuel: Diesel
- Fuel System Type: Pump-Line-Nozzle (PLN) with Mechanical In-Line Injection
- Lube Oil Capacity (Litre): 22
- Coolant Capacity (Litre): 21
- Governor and Actuator Type: Mechanical Governor, Mechanical Linkage Actuator
- Exhaust Silencer: Included
Generator Set Dimensions and Weight
- Weight (kg): 1,560

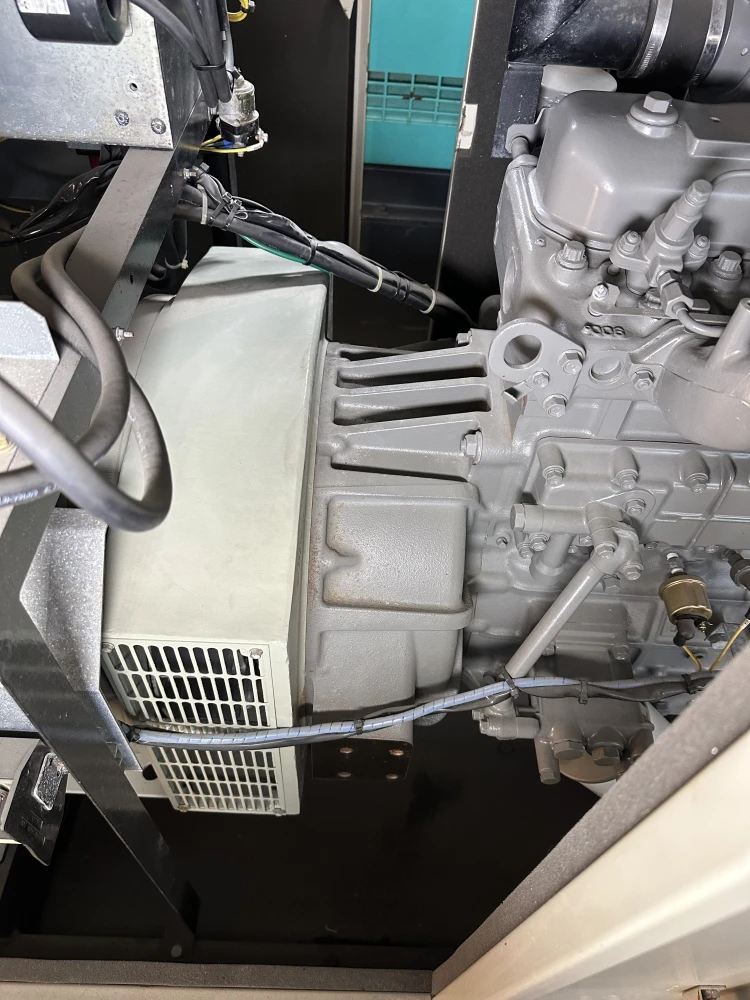

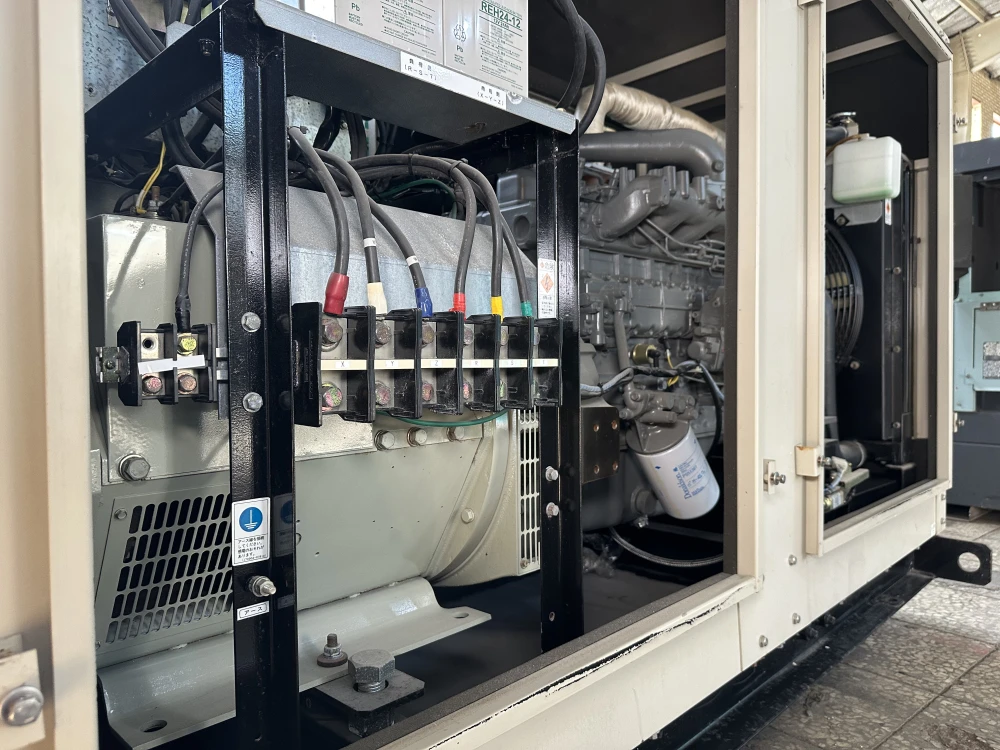

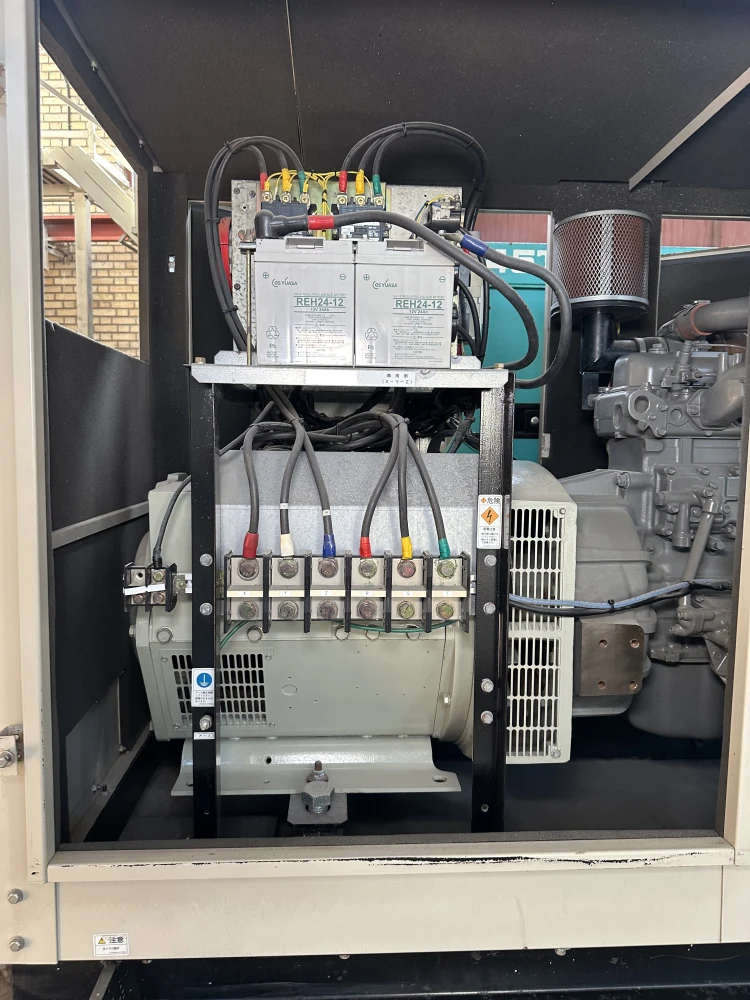

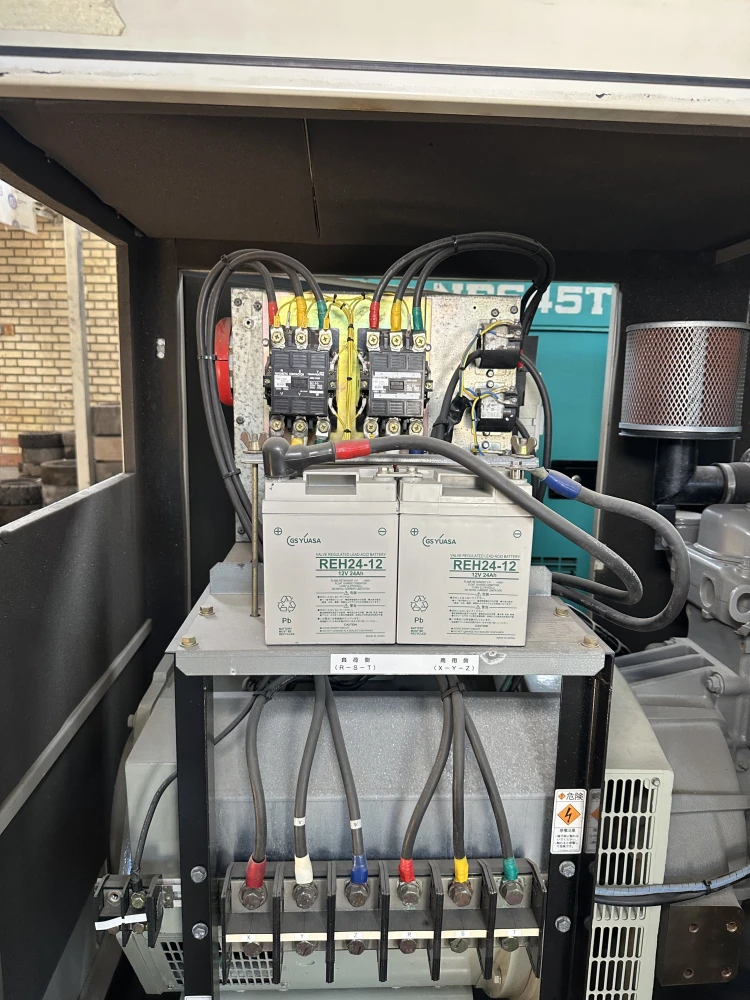

Alternator
- Make and Model: Ohatsu Corporation
- Voltage (V): 220/380
- Frequency (Hz): 50
- No. of Phases: Three
- Power Factor: 0.8
- Insulation: Class H
